Welded Swage Fork Terminal
Fork terminals are amongst the most commonly used wire end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.
In stock
SKU
BW10
From
€12.00
€12.00
Fork terminals are amongst the most commonly used wire end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.
Not all dimensions shown below are normally in stock.
Specifications

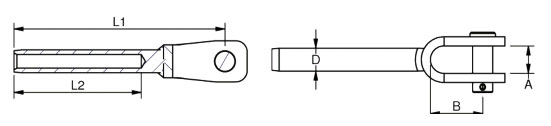

| ART. NO. | WIRE | PIN | A | B | D | L1 | L2 | BL | KG/100 |
|---|---|---|---|---|---|---|---|---|---|
| 100502 | 2 | 5,0 | 7,5 | 12 | 5,50 | 58 | 32 | 800 | 2,0 |
| 100525 | 2,5 | 5,0 | 7,5 | 12 | 5,50 | 58 | 32 | 800 | 2,0 |
| 100503 | 3 | 5,0 | 7,5 | 12 | 6,35 | 67 | 38 | 800 | 2,3 |
| 100603 | 3 | 6,0 | 9,5 | 13 | 6,35 | 68 | 38 | 1300 | 2,8 |
| 106303 | 3 | 6,4 | 9,5 | 13 | 6,35 | 68 | 38 | 1300 | 2,8 |
| 100504 | 4 | 5,0 | 7,5 | 12 | 7,50 | 71 | 45 | 800 | 2,7 |
| 100604 | 4 | 6,0 | 9,5 | 13 | 7,50 | 73 | 45 | 1500 | 3,4 |
| 100804 | 4 | 8,0 | 11,0 | 15 | 7,50 | 77 | 45 | 1700 | 4,9 |
| 100605 | 5 | 6,0 | 9,5 | 13 | 9,00 | 83 | 51 | 1500 | 4,1 |
| 100805 | 5 | 8,0 | 11,0 | 15 | 9,00 | 87 | 51 | 2400 | 5,5 |
| 109505 | 5 | 9,5 | 12,0 | 19 | 9,00 | 91 | 51 | 2400 | 7,2 |
| 100806 | 6 | 8,0 | 11,0 | 15 | 12,58 | 99 | 64 | 3200 | 10,0 |
| 109506 | 6 | 9,5 | 12,0 | 19 | 12,58 | 104 | 64 | 3800 | 11,3 |
| 101106 | 6 | 11,0 | 13,0 | 23 | 12,58 | 108 | 64 | 5000 | 13,9 |
| 101206 | 6 | 12,0 | 14,0 | 25 | 12,58 | 110 | 64 | 5200 | 17,6 |
| 101207 | 7 | 12,0 | 14,0 | 25 | 14,20 | 119 | 70 | 6500 | 18,1 |
| 101208 | 8 | 12,0 | 14,0 | 25 | 16,00 | 136 | 83 | 6500 | 21,6 |
| 101308 | 8 | 12,7 | 14,0 | 25 | 16,00 | 136 | 83 | 6500 | 21,6 |
| 101608 | 8 | 16,0 | 18,0 | 33 | 16,00 | 145 | 83 | 8500 | 25,5 |
| 101410 | 10 | 14,0 | 18,0 | 32 | 17,80 | 151 | 89 | 9400 | 35,0 |
| 101610 | 10 | 16,0 | 18,0 | 33 | 17,80 | 151 | 89 | 9400 | 35,0 |
| 101612 | 12 | 16,0 | 18,0 | 33 | 20,00 | 174 | 105 | 11200 | 60,0 |
| 101912 | 12 | 19,0 | 24,0 | 48 | 20,00 | 189 | 105 | 11200 | 66,0 |
| Diameter | 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm |
|---|
